New LCD Technology Could Increase Viewing Angle Of The Display

  • Researchers propose multidomain displays to improve viewing angle and color rendition.
  • It works with liquid crystal polymers, poly(di-n-alkylsiloxanes).
  • It can facilitate fabrication procedure and open new doors in the field of printed and organic electronics.

The liquid crystal display (LCD) market has fully appreciated the benefits of the liquid crystal state of matter, combining mobility and order, which allow for high efficiency, low power consumption and device compactness.

However, one of the major limitations of LCD technology is its viewing angle: From a sideways perspective, it does not render colors accurately. It happens due to the co-alignment of liquid crystals.

To solve this issue, an international team of researchers from Germany, Russian and France has proposed a new technique for orienting liquid crystals. Let’s find out what exactly they did to overcome this decades-old problem.

Liquid Crystals

Most crystals are solid: their atoms or molecules form an ordered 3D structure. But liquid crystals lack this configuration, and they can flow. Molecules in a liquid-crystal state has intermediate properties between those of crystal and liquids, which gives them ability to flow.

The molecules of an LC material have to anisometric: a disk- or rod-shaped. Their properties depend on the direction, for instance, in a liquid crystal, polarized light propagates at varying speeds along different directions. Their orientation can be quickly altered by changing electric or magnetic field, a phenomenon called Fréedericksz transition.

The optical properties of liquid crystals and their realigning ability make them widely popular in electronic displays, phones, computers, TVs and devices.

LCD

In LCDs, the image is formed by altering the light intensity in each pixel through an electric field that realigns liquid crystal materials. LCDs have multiple configuration, but the most popular is based on twisted nematic liquid crystals: rod-shaped thermotropic liquid crystals. They can be easily twisted and untwisted by applying an electric field.

Nematic liquid crystal display | Credit: MIPT press office

You might know each pixel in color LCDs contains 3 subpixels: Red, Green and Blue (RGB). Any color can be displayed on screen by fluctuating their intensities. A subpixel in a twisted nematic LCD contains a light source, two polarizers, a color filter and a liquid crystal placed between two glass plates with electrodes.

Read: New Paper-Thin LCD Design Could Revolutionize Printed Media

The liquid crystal untwist when voltage is applied, which alters the light polarization to a certain degree. Thus, a part of the light gets blocked. Ultimately, for a particular voltage, no light can reach the color filter, and this makes subpixel(s) go dark.

The viewing angle of this technology is not so great. To solve this problem, researchers proposed multidomain displays, in which a set of pixel is associated with a number of domains whose liquid crystal orientations are different. This makes at least some domains always oriented in the right direction.

How It Works?

This approach works with liquid crystal polymers. A small variation in polymer structures can drastically change their orientation on the substrate. The polymers we are talking about are PDAS or poly(di-n-alkylsiloxanes).

Chemical structure of PDAS

In this polymer, each molecule is a chain consisting of alternating oxygen and silicon atoms. The silicon atoms are linked with two symmetric hydrocarbon side chains. The “n” in the compound represents the length of the side chains, which varies between 2 and 6.

The researchers deposited this polymer on a Teflon-coated aligning surface with a regular groove pattern. Then, they analyzed the polymer-chain orientation with respect to the grooves direction on the aligning surface.

Reference: ACS Macro Letters | doi:10.1021/acsmacrolett.8b00044 | MIPT

They increased the length (n) of the side chain in steps of one CH₂ group (methylene) at a time. The needlelike polymer co-aligned with the Teflon grooves, at n=2. And they showed that the polymer chains are perpendicular to the grooves on the substrate (shown on the left side of the image).

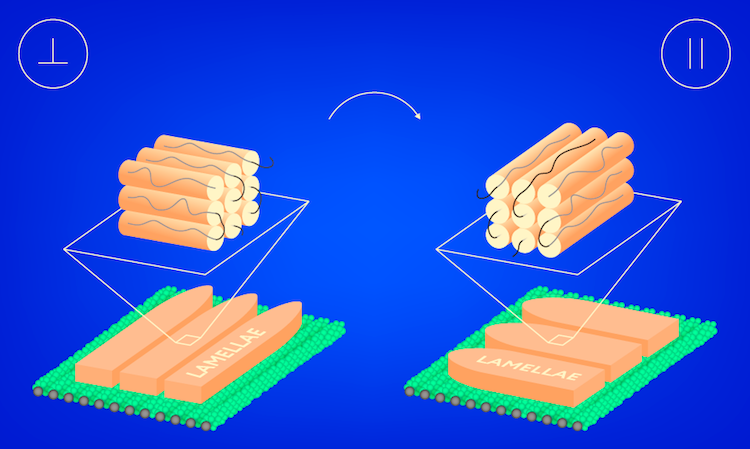

Liquid crystal orientations with respect to the teflon substrate | Credit: MIPT

At n=3, the polymer orientation changed by 90 degrees, meaning they are aligned perpendicular to the grooves. Therefore, the liquid crystal polymer chains are now oriented parallel to the grooves (shown on the right side of the image).

No further change was seen in orientation when the value of n was increased to 4. However, at n=5 and n=6, the needlelike polymer again co-aligned with the Teflon grooves.

Conclusion

The authors have discovered that by increasing methylene group in a polymer side-chain, the orientation of liquid crystal could be switched, which is quite important for liquid crystal displays and other applications.

The induction of 2 mutually orthogonal liquid crystal orientation becomes feasible on the same rubbed substrate. This can enable the fabrication procedure and open new doors in the field of printed and organic electronics.

Read: Transparent Materials Can Absorb Light | An Unusual Optical Effect

This multidomain technology could improve the viewing angles in LCDs. Since pixels compensate one another when viewed at an angle, it enhances color rendition. Moreover, the researchers believe that this method would be less expensive and simpler than other existing multidomain techniques.
